- Hydraulic Lift Table
【Functionality】
-Foot pedal hydraulic lift system, Infinitely adjustable down-speed. Activated by separate foot pedal.
【OEM/ODM】
-Available in customized size, color and whole product.

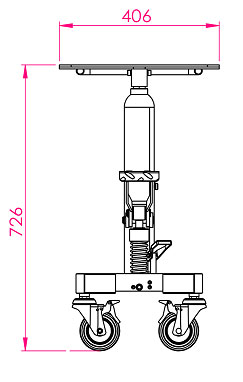

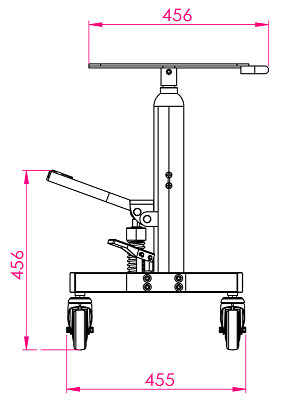

Dimension 406 X 456 X 726mm (±0.5cm)
Pegboard Dimension 406mm X 406mm
Pedal Height 457mm(±0.5cm)
Color Black / Red or Custom Color
Caster 4" Heavy duty casters (4 swivel and lockable)
Overall Height 726mm(±0.5cm)

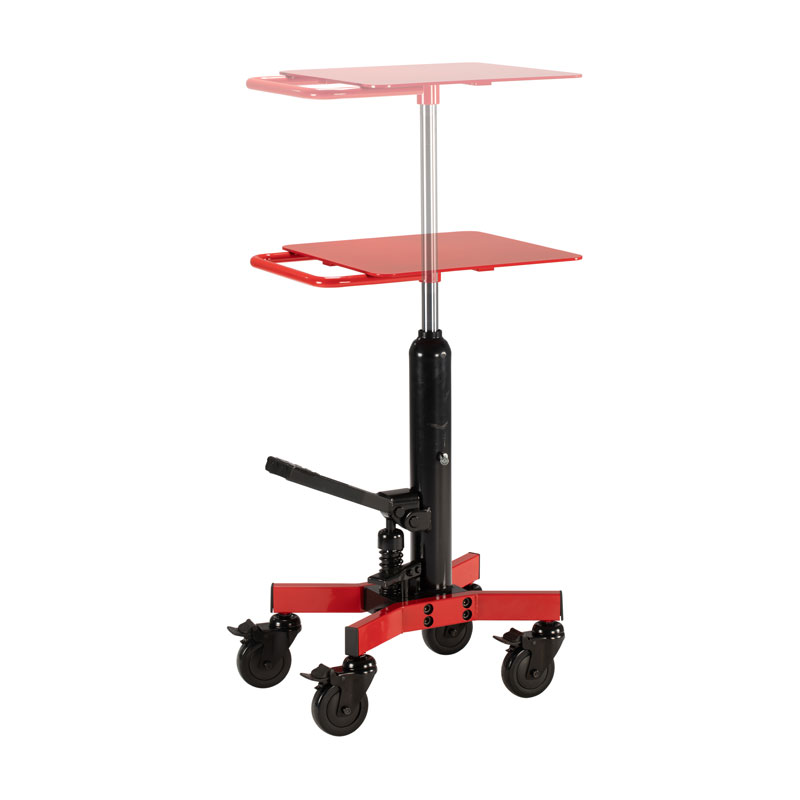

Lift range 72cm to 113cm
Load Capacity Maximum load capacity 220kg
Available in customized size, color and whole product.
-Foot pedal hydraulic lift system, Infinitely adjustable down-speed. Activated by separate foot pedal.
【OEM/ODM】
-Available in customized size, color and whole product.
Specs
Material Steel, plasticDimension 406 X 456 X 726mm (±0.5cm)
Pegboard Dimension 406mm X 406mm
Pedal Height 457mm(±0.5cm)
Color Black / Red or Custom Color
Caster 4" Heavy duty casters (4 swivel and lockable)
Overall Height 726mm(±0.5cm)
Lift range 72cm to 113cm
Load Capacity Maximum load capacity 220kg
Features
FunctionalityFoot pedal hydraulic lift system, Infinitely adjustable down-speed. Activated by separate foot pedal.
ErgonomicPedal in ergonomic position placed beside the structure.
CoatingReversible top tray: Flat style to suit tool chests and as a work surface OR Tray style to suit tools, parts, accessories etc.
MobilityEasy transport assured by 4 total-lock swivel, casters with large 4" polyurethane wheels.
CustomizationAvailable in customized size, color and whole product.
Other-Lift range from 72cm to 113cm.
-Maximum load capacity 200kg, evenly distributed on the table top.
Colors
Application
Auto repair, home garage, warehouse and industrial solution.
Mechanism
- Manual Adjustment.
- Heavy Duty Steel Construction.
- No electricity required.
Plus
【OEM/ODM】Available in customized size, color and whole product.
Design
