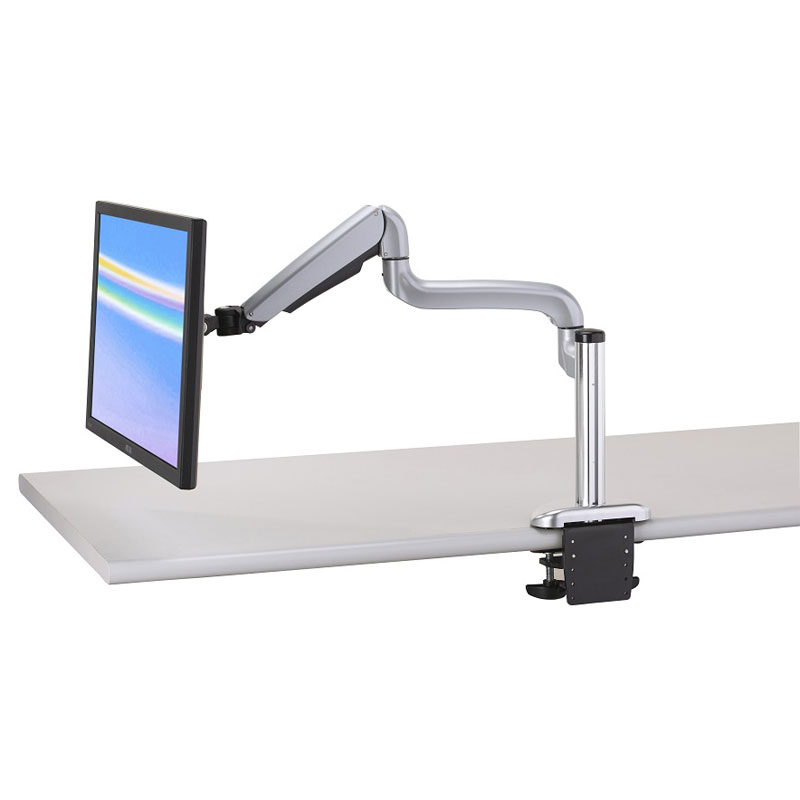

Gas Spring Monitor Arm w/Sliding Tracks (1-4, 6 monitors)

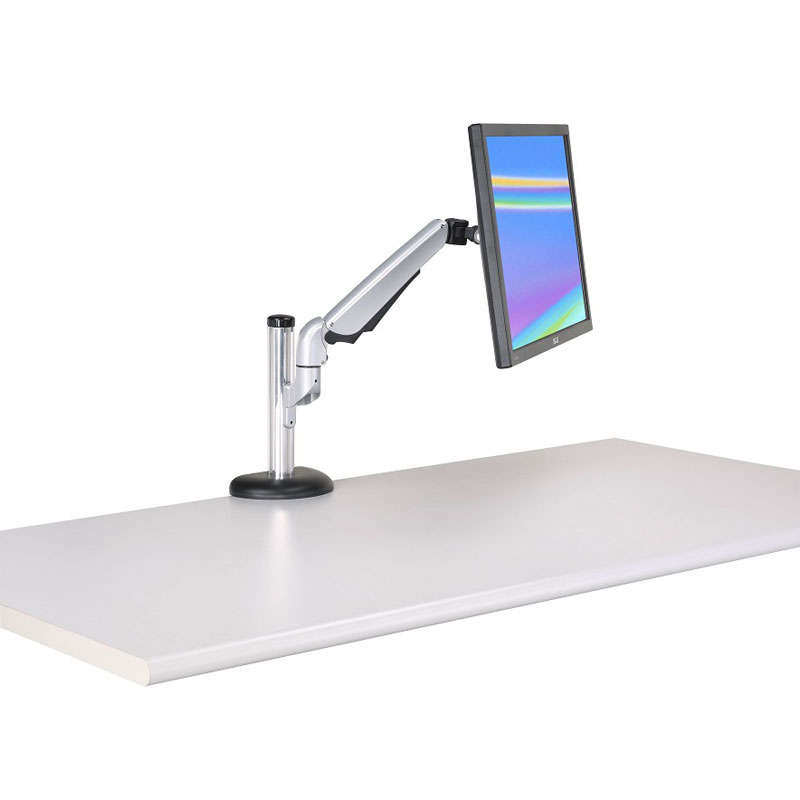

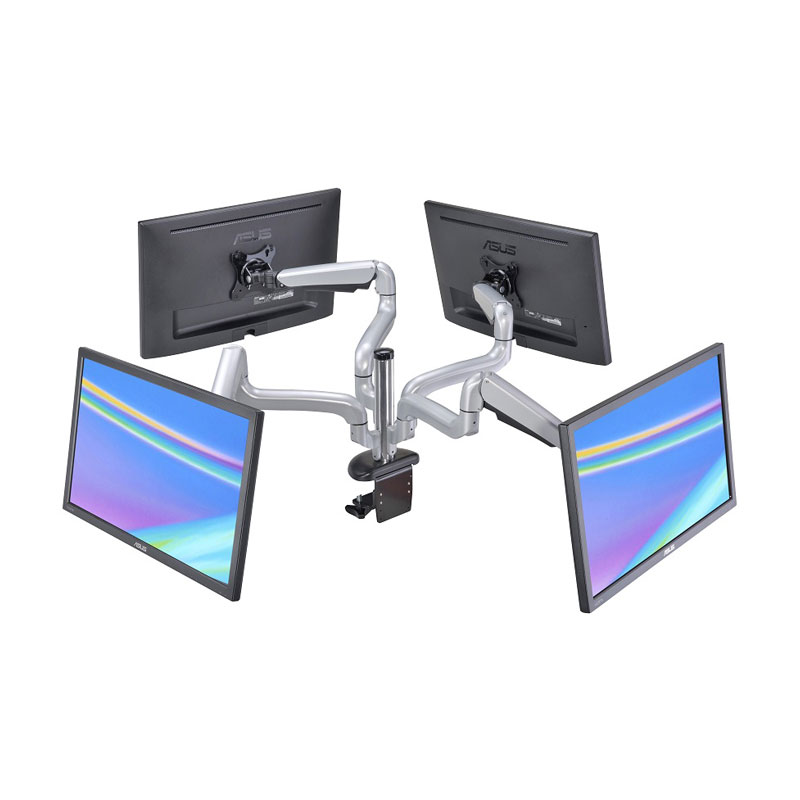

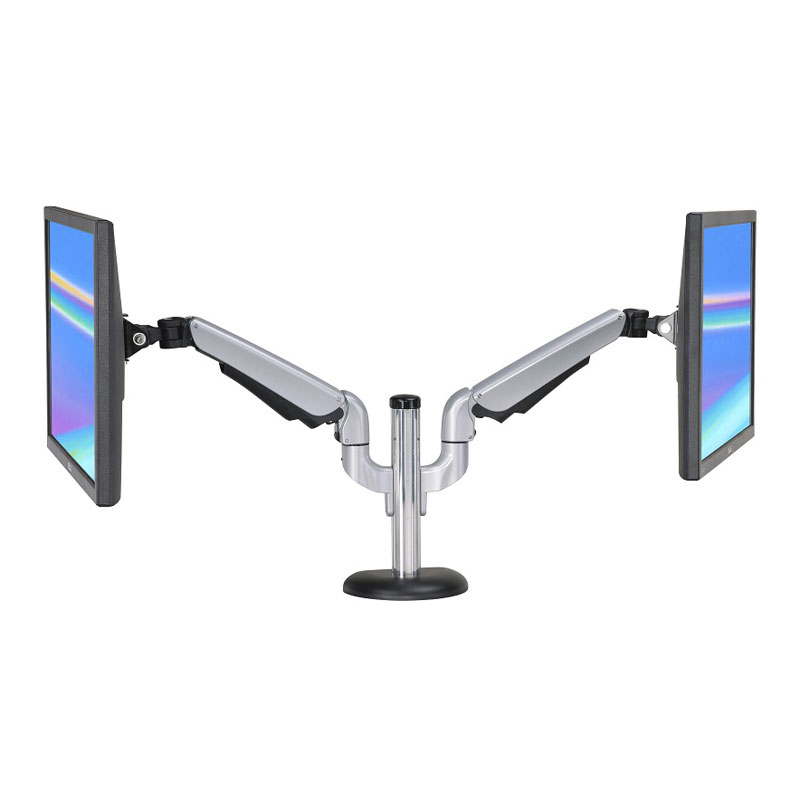

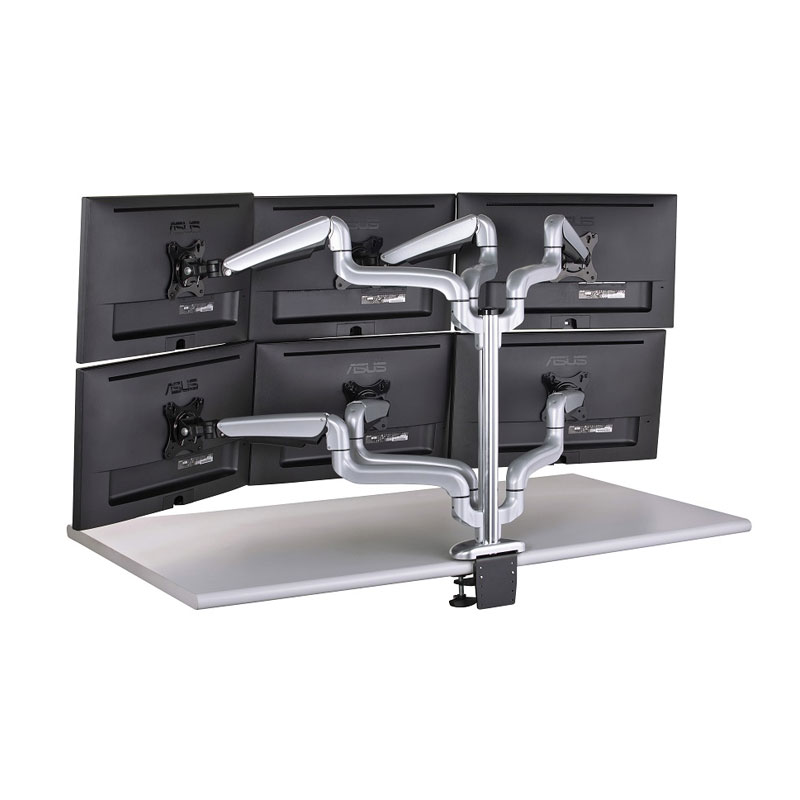

PC702 represents the high quality monitor mount available on the market. Sliding Tracks make 4-direction installation possible. Offering solutions from one to four, and six monitors and compatible with three types of arms, the type A, B and C. The mounting options include desk clamp and grommet base.
PC702 Series made from aluminum with sturdy structure, hold up from 4.4 to 15.4 lbs per arm while suspend and swing effortlessly above the desktop. The monitor arm offers tilt, swivel, height adjustment, landscape rotation and cable management that make users work in a comfortable ergonomic position and streamline workspace easily. With gas spring-assisted pivot for the monitor offers fluid movement with the slightest touch which makes adjustment outstandingly easy.
People spend tons of time with their computer to work, study, rest and gaming nowadays, it is important to arrange computer monitor in a right position for you instead of the other way around. Reclaim your work space, improve productivity and health by adopting monitor mount!
- 4-direction installation possible with slide track design.
- Variety options of arm quantity from 1-6 while 3 different length of arm are available to choose.
- Gas spring-assisted pivot for the monitor offers fluid movement.
- Made from aluminum with study structure which makes it a heavy-duty and eye-catching mount.
- Having monitor 360° rotate, +90°-45° tilt, 180° pan.
- Cable management design to streamline worktop.
- VESA 75x75、100x100 Compatible with most of LCD screens.
- Improve users viewing experience, working, studying efficiency while ease the pain of neck and shoulder.
Mechanism Gas Spring
Screen CompatibilitySuits the monitor ≦27"for single and dual
Suits the monitor ≦24"for 3 to six monitors
Vesa75x75 mm, 100x100 mm
Weight Capacity (EA) 2-7 kgs / 4.4-15.4lbs
Tilt UP 90°; Down 45°
Pan180 °
Rotation360°
StablitySecure and fasten valuable monitor or dispaly onto any worktops to prevent accidental crashes.
ComfortTilting angles can be adjusted upwards and downwards to cater for users' viewing experience.
FunctionalityCustomized settings is easily achieved with 180° horizontal movement and 360° individual screen rotaiton.
AccessibilityArticulating arm structure helps to shorten or extend the viewing distance.
Space savingLeaving worktop clean and easy to manage.
Easy installationApply the clamp base and fasten with screw. Job done.


- Manual Adjustment.
- Stay still where positioned.
- No electricity required.
- Environmentally-friendly.
【Standard Pack】
PC702-DC-01-C
Extended Adjustable Arm with vesa plate x 1pc and standard pole clamp mount set x 1pc
PC702-DG-01-C
Extended Adjustable Arm with vesa plate x 1pc and standard pole grommet mount set x 1pc
【Optional】

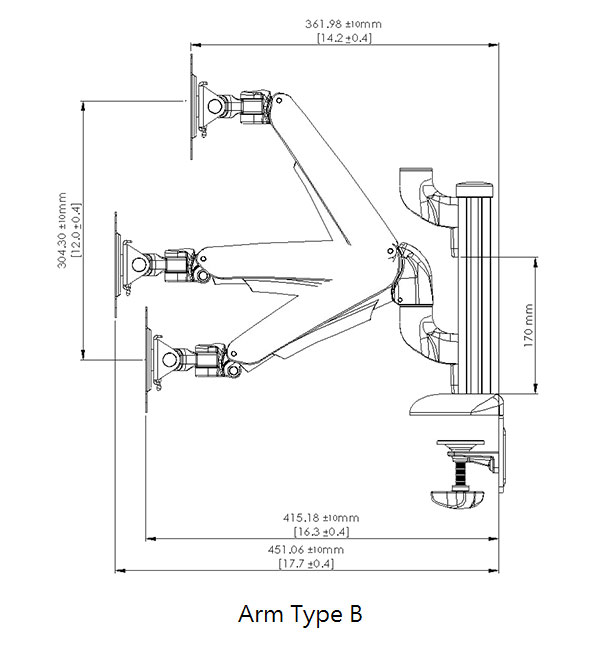

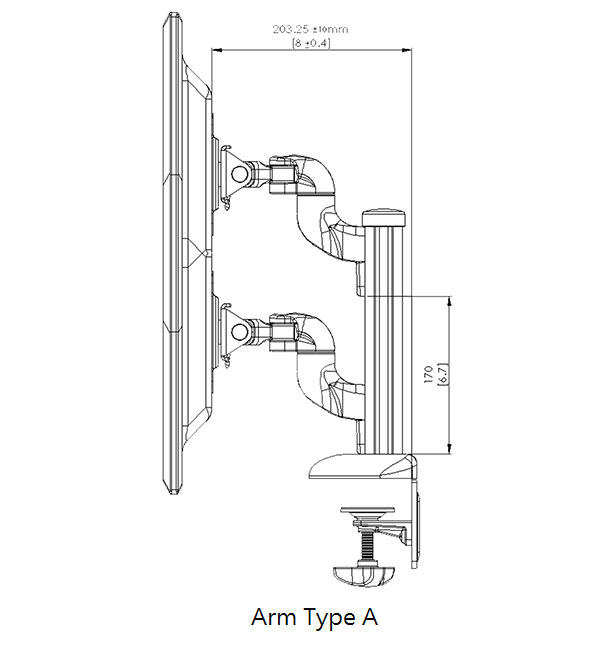

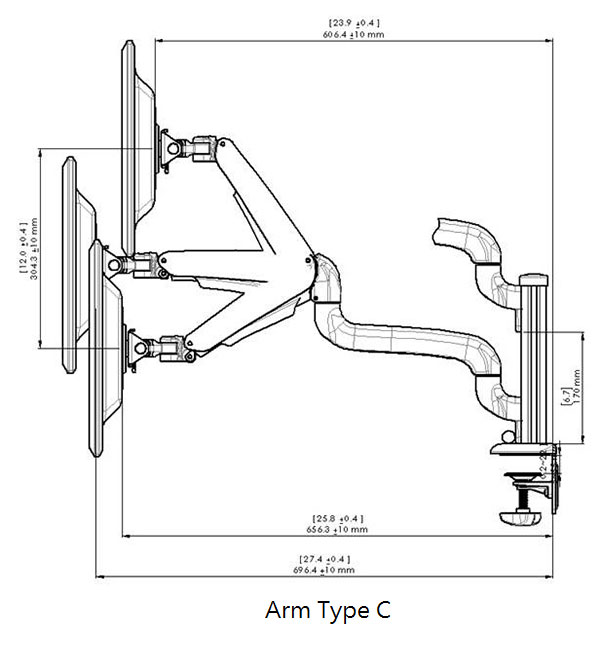

Arm Type: A, B, C

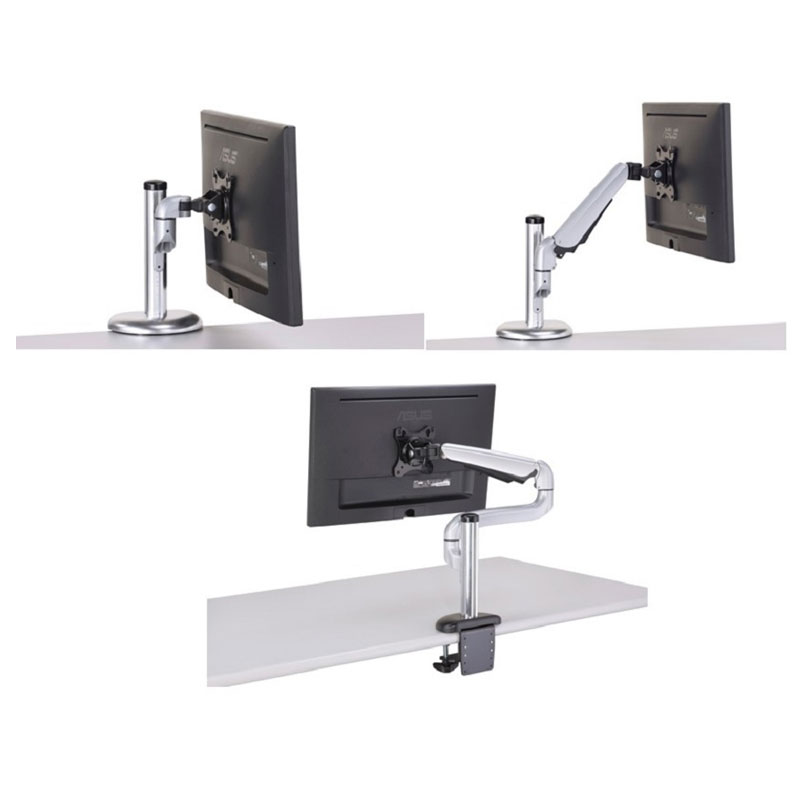

Desk Mount: Clamp or Grommet
【Accessories】
PC702-DC-S Standard pole clamp
PC702-DC-H Heavy pole clamp
PC702-DG-S Standard pole grommet
PC702-DG-H Heavy pole grommet
PC702-W Wall mount
PC702-S Wandklem mount
PC702-A Arm Stem
PC702-B Adjustable Flexy Arm
PC702-C Extended Adjustable Arm
