  • Gas Spring Single Monitor Arm Desk Mount for LCD Screen with Mini Desk Clamp
Product Code : PC702-400

Gas Spring Single Monitor Arm Desk Mount for LCD Screen with Mini Desk Clamp

Inquiry PC702_CATALOG
SHARE：

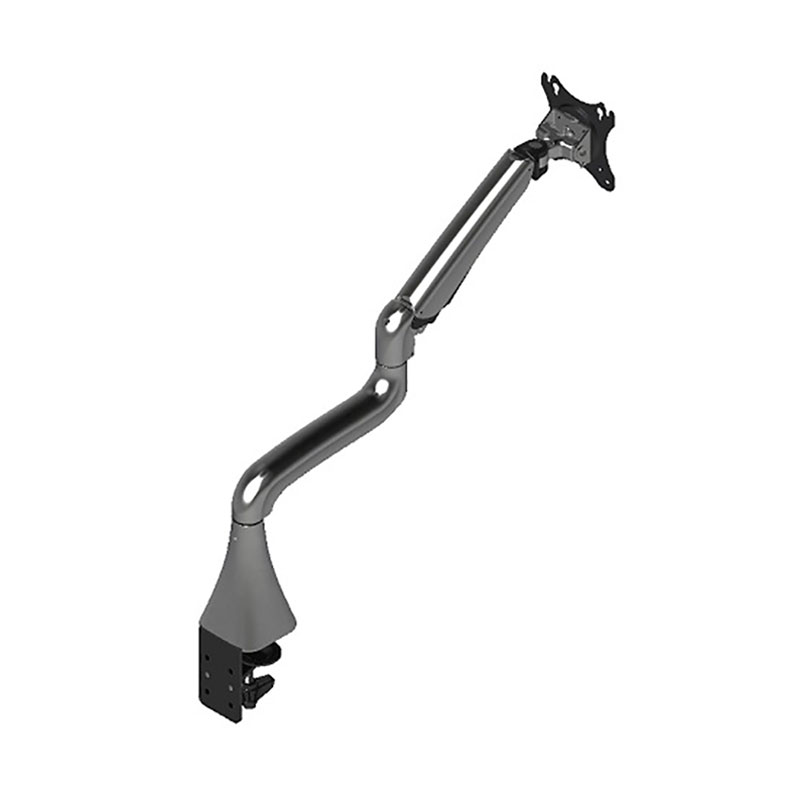

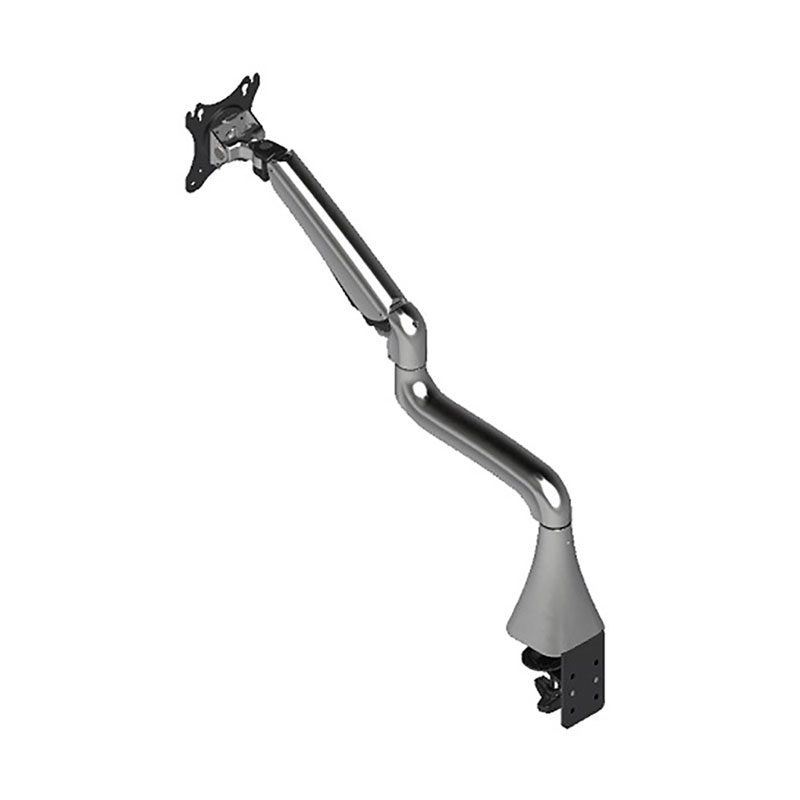

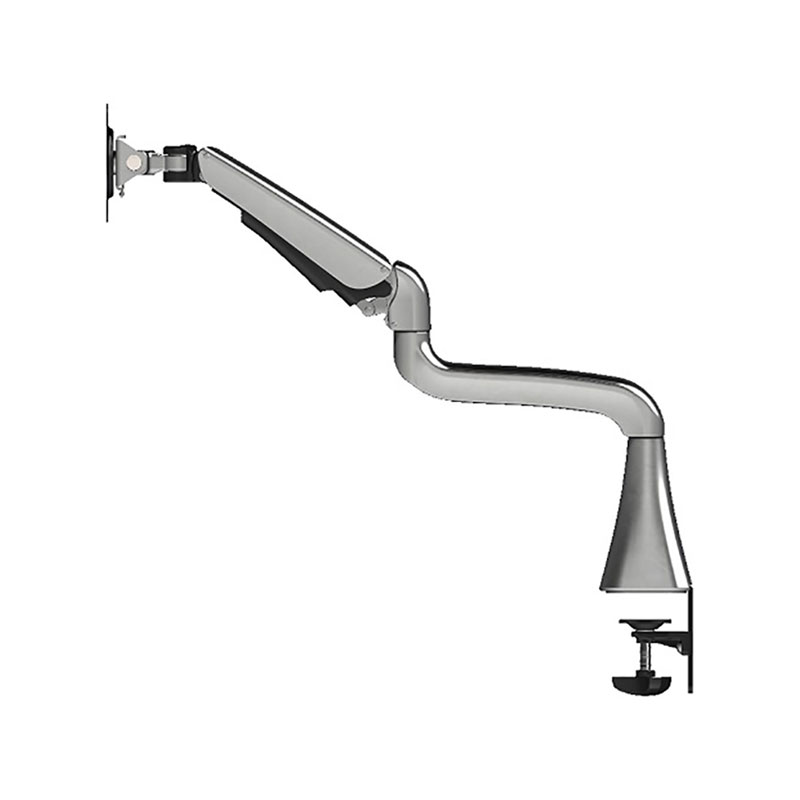

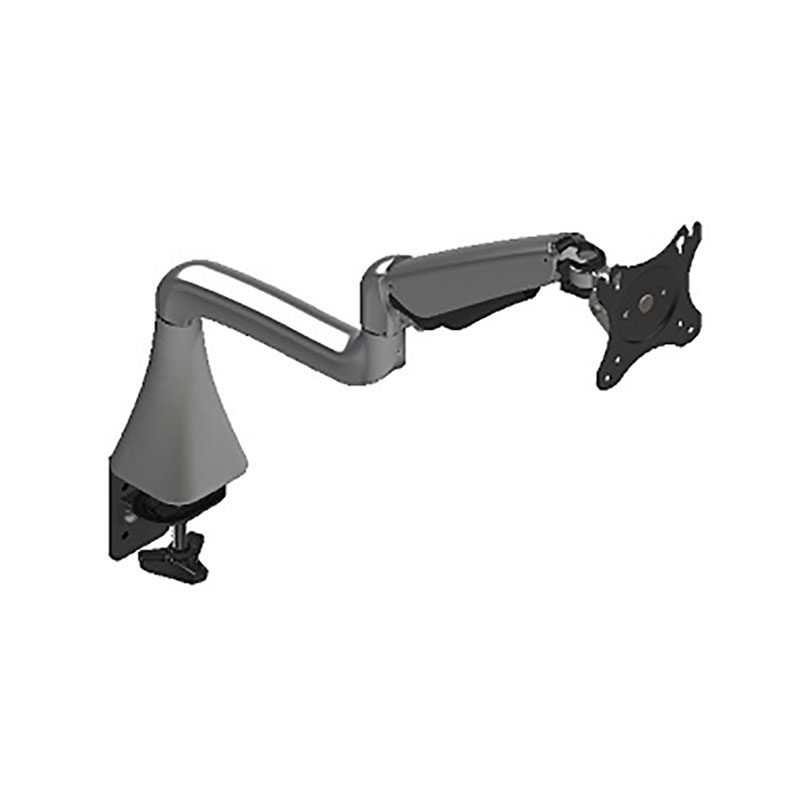

PC702-400 with mini desk clamp is made from aluminum with sturdy structure, support a 27" monitor weighing up from 4.4 to 15.4 lbs while suspend and swing effortlessly above the desktop. The monitor arm offers tilt, swivel, height adjustment, landscape rotation and cable management that make users work in a comfortable ergonomic position and streamline workspace easily. With gas spring-assisted pivot for the monitor offers fluid movement with the slightest touch which makes adjustment outstandingly easy.
Specs

Screen Compatibility Suits the monitor ≦27"for single and dual

Vesa 75x75 mm, 100x100 mm

Monitor Capacity 2-7.0 kgs/ 4.4-15.4 lbs

Tilt UP 90°; Down 45°

Pan 180°

Rotation 360°

Worktop Thickness Standard Base: 5-55 mm / 0.2"-2.1"
Heavy Load Base: 18-90 mm / 0.7"-3.5"

Base Options Standard (1-2 screens)
Heavy Load (3-6 Screens)

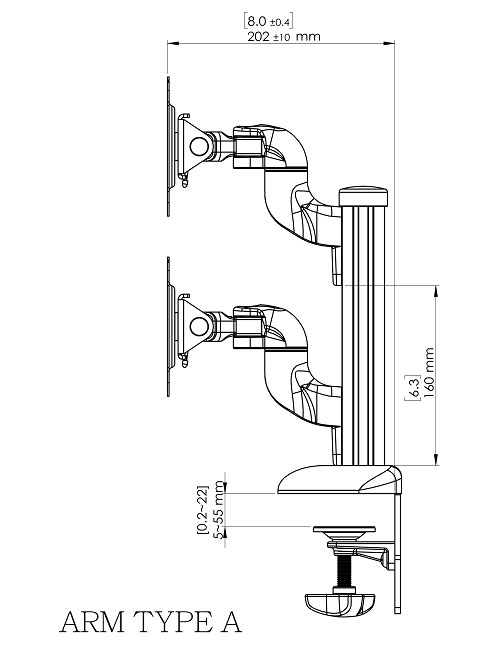

Arm Option A-Arm stem

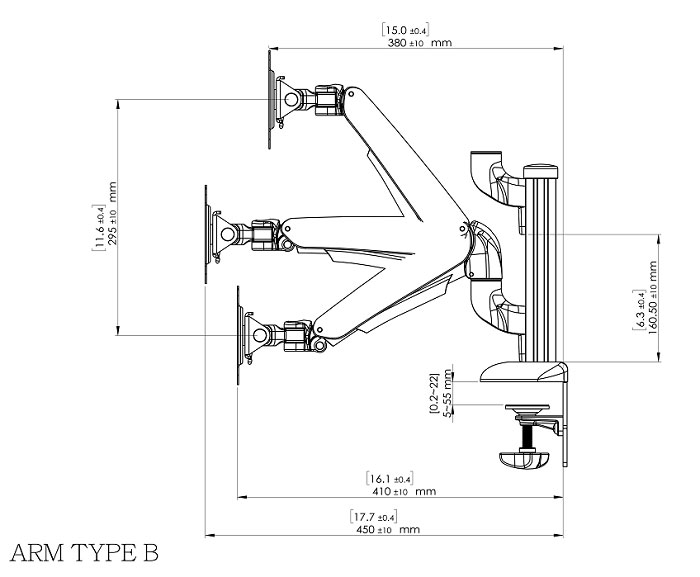

B-Adjustable Flexy Arm

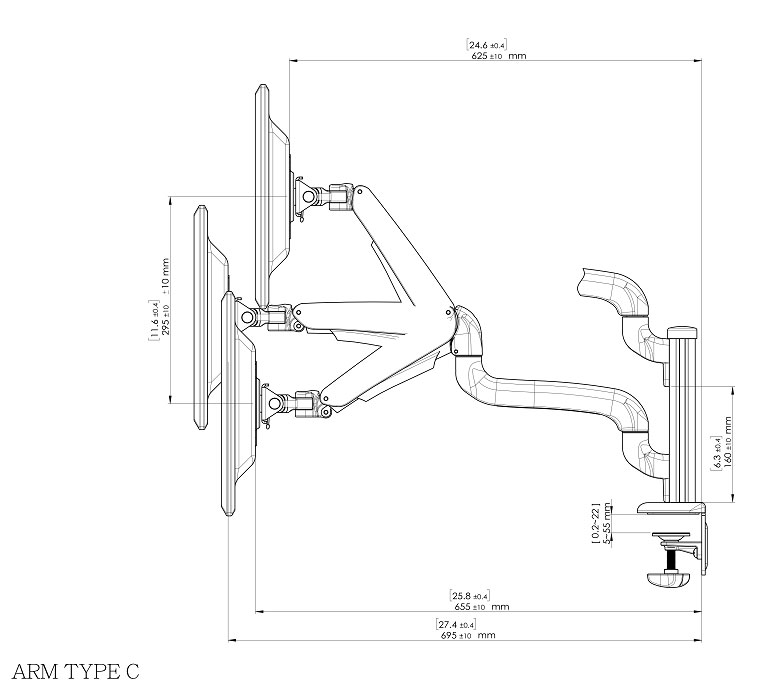

C-Extended Adjustable Arm

Material Aluminum articulating arm & pole
Iron Base with Plastic Cover

Features

Comfort Tilting angles can be adjusted upwards and downwards to cater for users' viewing experience.

Functionality Customized setting is easily achieved with 180° horizontal movement and 360° individual screen rotation.

Accessibility Articulating arm structure helps to shorten or extend the viewing distance.

Space saving Leaving worktop clean and easy to manage.

Easy installation Apply the mini clamp base and fasten with screw.

Colors
Mechanism
  • Manual Adjustment.
  • Stay still where positioned.
  • No electricity required.
  • Environmentally-friendly.
Plus

【Standard Pack】
 1. Arm with Vesa Plate x 1pc
2. Standard Pole Mount Set x 1pc

【Optional】
 1. Arm Type: A, B, C
A: Arm Stem
B: Adjustable Flexy Arm
C: Extended Adjustable Arm
2. Desk Mount: Clamp or Grommet

【Accessories】
PC702-DC-S Standard pole clamp
PC702-DC-H Heavy pole clamp
PC702-DG-S Standard pole grommet
PC702-DG-H Heavy pole grommet
PC702-W Wall mount
PC702-S Screen Hanging mount

More

Order with:

  • PC311
  • PC702-DC&DG-02
  • PC702-DC&DG-03
  • PC702-DC&DG-04
  • PC702-DC&DG-06
