  • Gas Spring Single Monitor Arm Desk Mount for LCD Screen up to 27 inches
Product Code : PC702-DC,DG-01

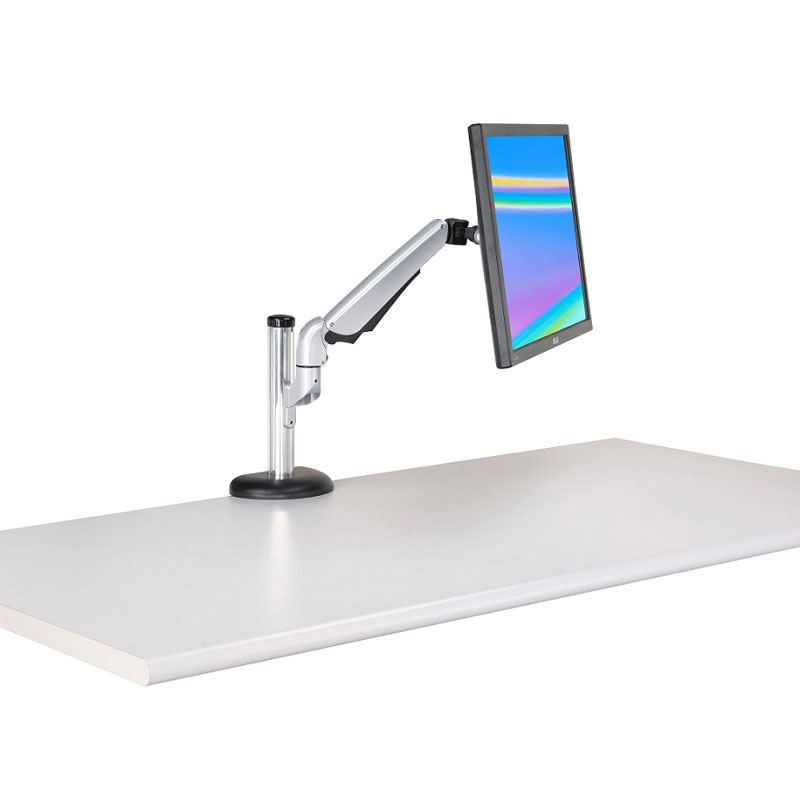

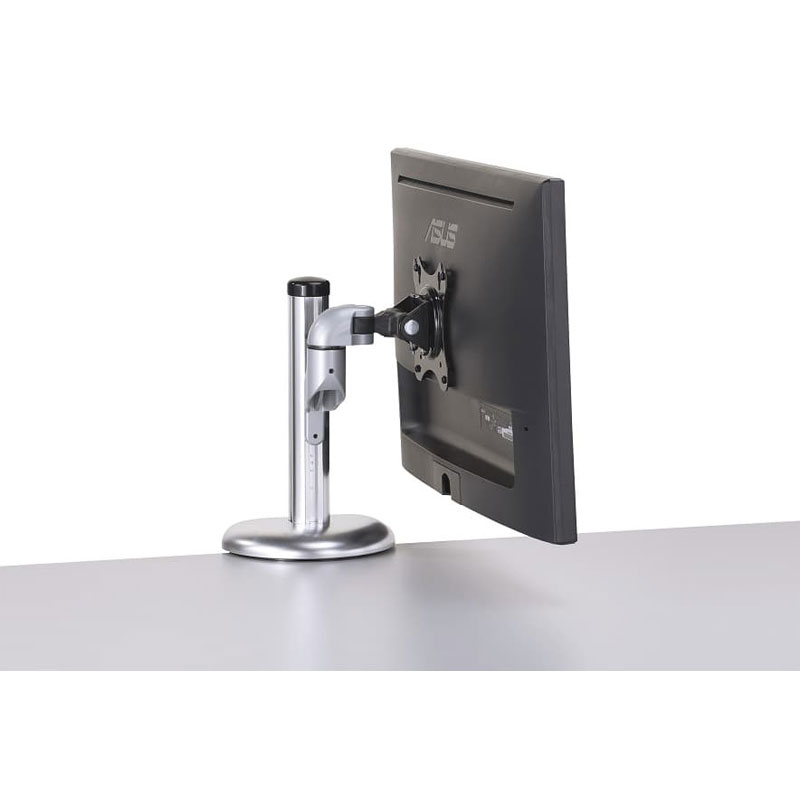

Gas Spring Single Monitor Arm Desk Mount for LCD Screen up to 27 inches

Inquiry PC702_CATALOG PC702-DC-01-C 210511VER.1.pdf
SHARE：
PC702 represents the high quality monitor mount available on the market. Sliding Tracks make 4-direction installation possible. Offering solutions from one to four, and six monitors and compatible with three types of arms, the type A, B and C. The mounting options include desk clamp and grommet base.

PC702-DC-01 made from aluminum with sturdy structure, support a 27" monitor weighing up from 4.4 to 15.4 lbs while suspend and swing effortlessly above the desktop. The monitor arm offers tilt, swivel, height adjustment, landscape rotation and cable management that make users work in a comfortable ergonomic position and streamline workspace easily. With gas spring-assisted pivot for the monitor offers fluid movement with the slightest touch which makes adjustment outstandingly easy.

People spend tons of time with their computer to work, study, rest and gaming nowadays, it is important to arrange computer monitor in a right position for you instead of the other way around. Reclaim your work space, improve productivity and health by adopting monitor mount!
  1. 4-direction installation possible with slide track design.
  2. Variety options of arm quantity from 1-6 while 3 different length of arm are available to choose.
  3. Gas spring-assisted pivot for the monitor offers fluid movement.
  4. Made from aluminum with study structure which makes it a heavy-duty and eye-catching mount.
  5. Having monitor 360° rotate, +90°-45° tilt, 180° pan.
  6. Cable management design to streamline worktop.
  7. VESA 75x75、100x100 Compatible with most of LCD screens.
  8. Improve users viewing experience, working, studying efficiency while ease the pain of neck and shoulder.
Specs

Screen Compatibility Suits the monitor ≦27"for single and dual

Vesa 75x75 mm, 100x100 mm

Monitor Capacity 2-7.0 kgs/ 4.4-15.4 lbs

Tilt UP 90°; Down 45°

Pan 180°

Rotation 360°

Worktop Thickness Standard Base: 5-55 mm / 0.2"-2.1"
Heavy Load Base: 18-90 mm / 0.7"-3.5"

Base Options Standard (1-2 screens)
Heavy Load (3-6 Screens)

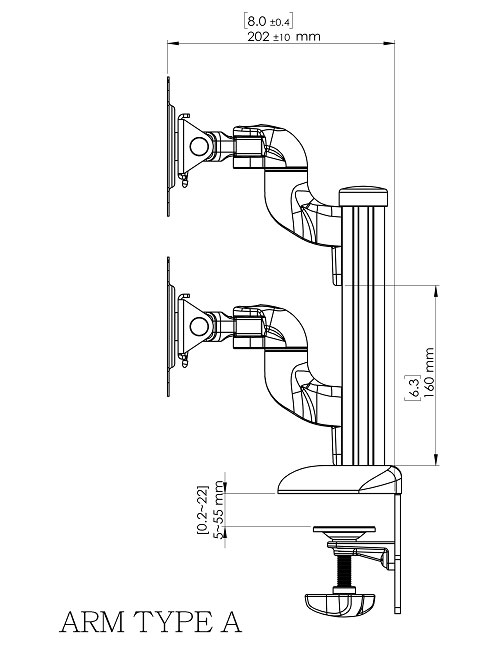

Arm Option A-Arm stem

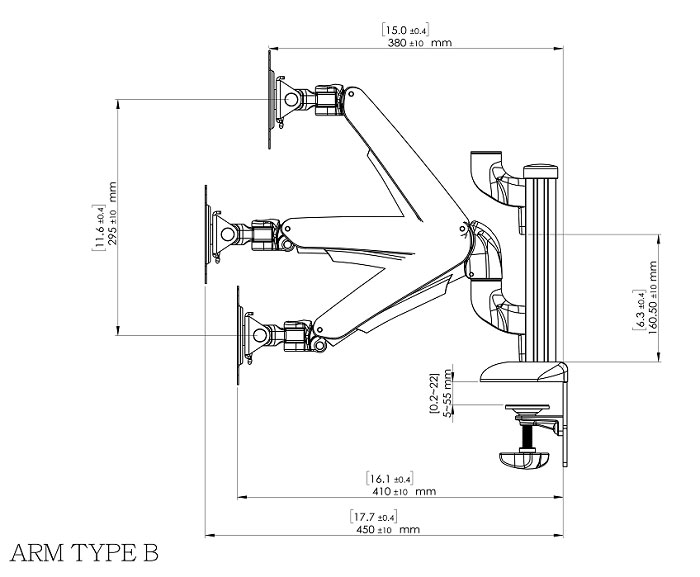

B-Adjustable Flexy Arm

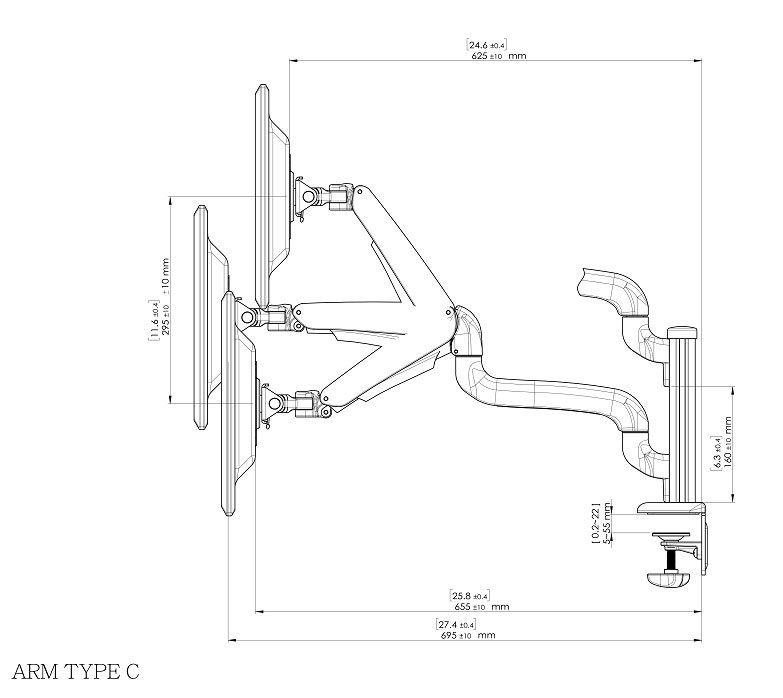

C-Extended Adjustable Arm

Material Aluminum articulating arm & pole
Iron Base with Plastic Cover

Features

Comfort Tilting angles can be adjusted upwards and downwards to cater for users' viewing experience.

Functionality Customized setting is easily achieved with 180° horizontal movement and 360° individual screen rotation.

Accessibility Articulating arm structure helps to shorten or extend the viewing distance.

Space saving Leaving worktop clean and easy to manage.

Easy installation Apply the clamp base and fasten with screw.

Colors
Mechanism
  • Manual Adjustment.
  • Stay still where positioned.
  • No electricity required.
  • Environmentally-friendly.
Plus

【Standard Pack】
 1. Arm with Vesa Plate x 1pc
2. Standard Pole Mount Set x 1pc

【Optional】
 1. Arm Type: A, B, C
A: Arm Stem
B: Adjustable Flexy Arm
C: Extended Adjustable Arm
2. Desk Mount: Clamp or Grommet

【Accessories】
PC702-DC-S Standard pole clamp
PC702-DC-H Heavy pole clamp
PC702-DG-S Standard pole grommet
PC702-DG-H Heavy pole grommet
PC702-W Wall mount
PC702-S Wandklem mount

More

Order with:

  • PC311
  • PC702-DC&DG-02
  • PC702-DC&DG-03
  • PC702-DC&DG-04
  • PC702-DC&DG-06
