Product Code : AS101

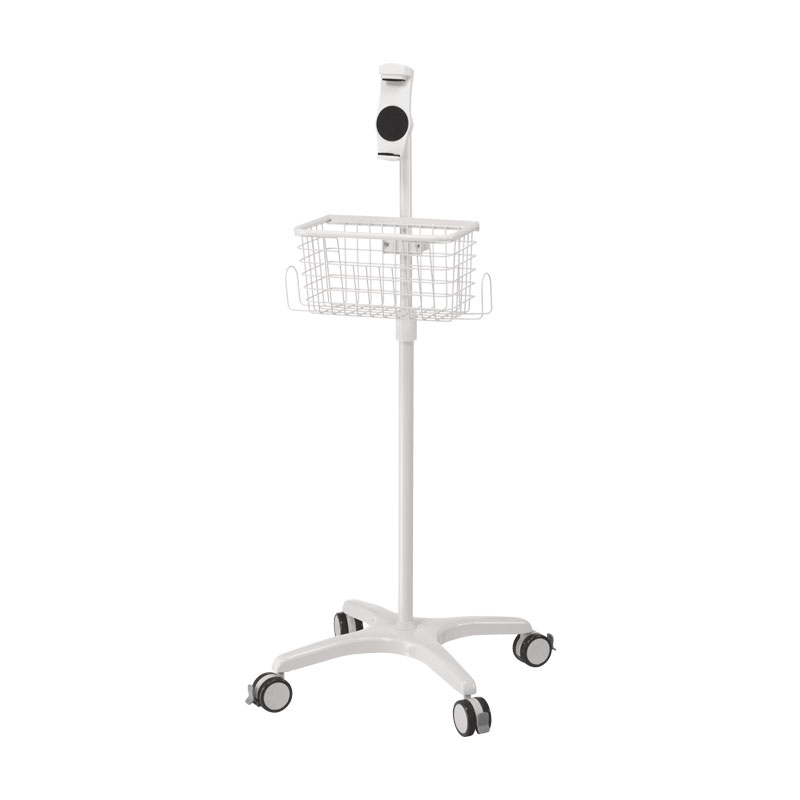

Mobile Portable Height Adjustable Tablet Rolling Cart Stand on Wheels for Medical, Home Use

Inquiry AS101 Installation Instruction.pdf AS101-drawing.pdf
SHARE：
【Height Adjustable】The rotary knob design can loose and tighten the tube to adjust the tube from the lowest-86.5cm to the highest height-121cm, so the height adjustment range is 34.5cm. The adjustable height tube design is suitable for all kinds of height users, advanced lightweight construction for pushing, pulling, sitting or standing  around your home, office or hospital patient room area with medical IoT portable devices such as Clinical Thermometer, Blood Pressure Monitor or Pulse Oximeter etc ..

【Universal Mobile Size】 Expandable snap-on case design provides a flexibility to fit any tablet or any mobile devices size or medical IoT portable devices from 4.7 to 13 inches.

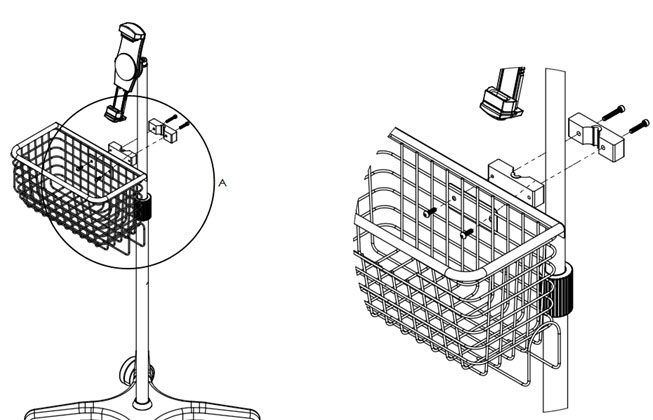

【A basket with handle design】The basket can restore clinical documents or small devises like blood pressure monitor(sphygmomanometer) or thermometer onto the basket. With handle which is easy to hold when steering the cart on move. Its side hooks have been provided in case of need for device or equipment cable to twine, and the maximum loading weight is 4kgs.

【2 in 1】 With easy-quick assemble to operate, you can remove the basket then use it as the portable table rolling stand on wheels to move around in home, office and the conference room for anywhere you like.
Specs

Compatible ModelsMobile Phone, iPad, Tab, Kindle and other tablet size of 4.7"-13"

Height 86.5cm~121cm(±1cm)

Base Material Iron

Wheel Dimension 3inch

Weight Capacity for Basket 4kg

Tube Material Iron

Basket Dimension 290x119x168mm

Total weight 5kg

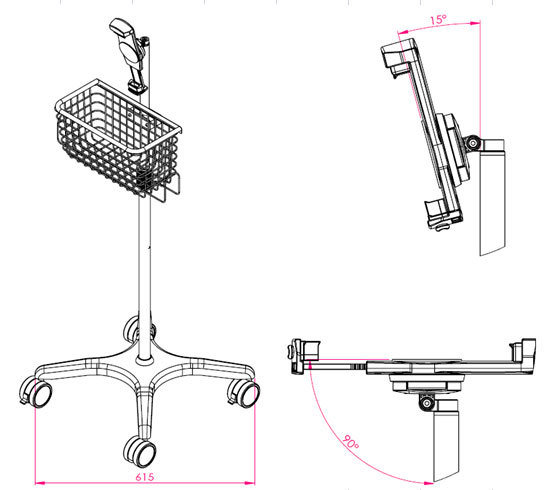

Tilt Upwards 85°; Downwards 84°

Screen Rotation 360°

Compatibility Fits any mobile devices, phone, tablet size of 4.7"-13" by any maker

Features

FlexibilityTilting angles can be adjusted upwards, downwards and horiozontally to cater for users' viewing experience with 360° screen rotation.

Easy release buttons are available to help mount the mobile devices(phone, tablets, etc) case or dismount it for portability. Side button is also available to easily adjust the fitting size at different stages.

FunctionalityCustomized settings can be set up by adjusting the viewing angles and distance.

MobilityEasily set up a mobile iteractive station without being permanently fixed at any spot .

Colors


Application
Home, Medical
Mechanism
  • Manual Adjustment (tools included and required at times).
  • Stay still where positioned.
  • No electricity required. Environmentally-friendly.
Plus

【Standard Pack】
Basket x 1pc (Optional)
Basket Holder A x 1
Basket Holder B x 1
Adjustable tube x 1pc
Base x 1pc
Universal Holder x 1pc
Hardware Kit x 1 set

More

Order with:

  • iPKD-U、iPS-U、
  • SP901B、SP905
