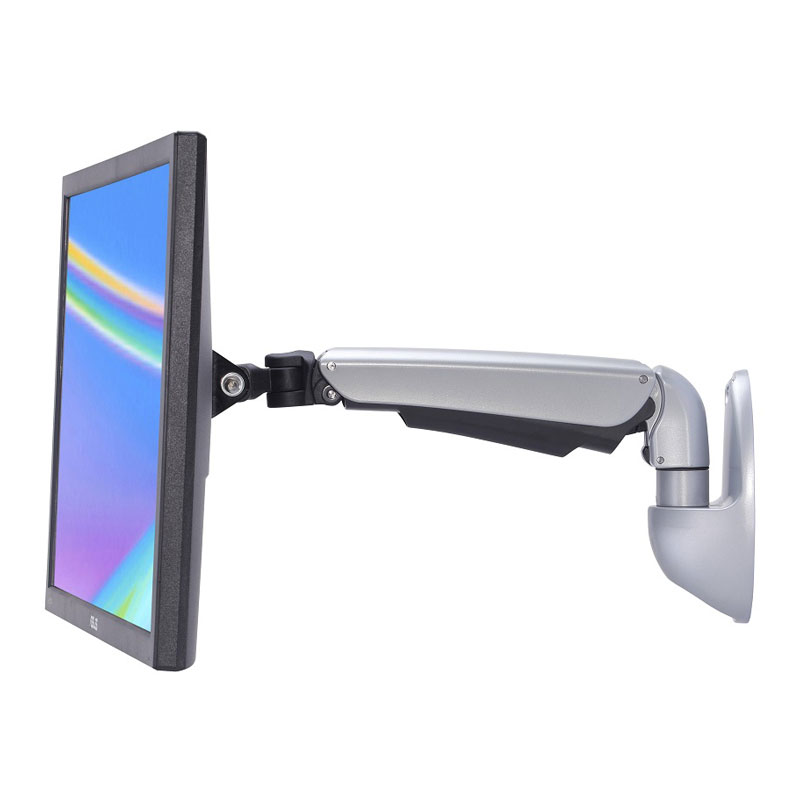

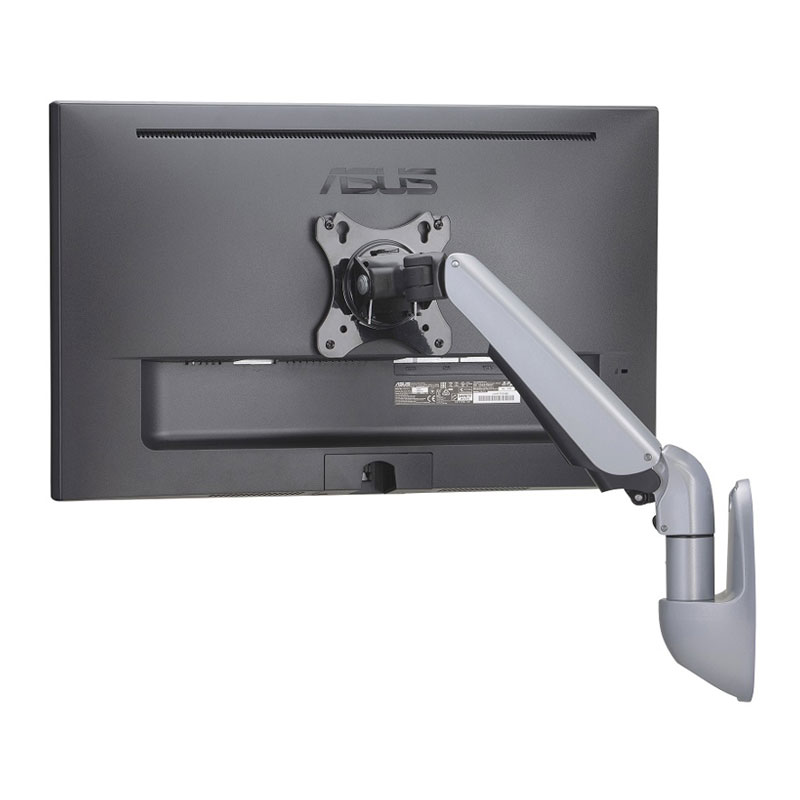

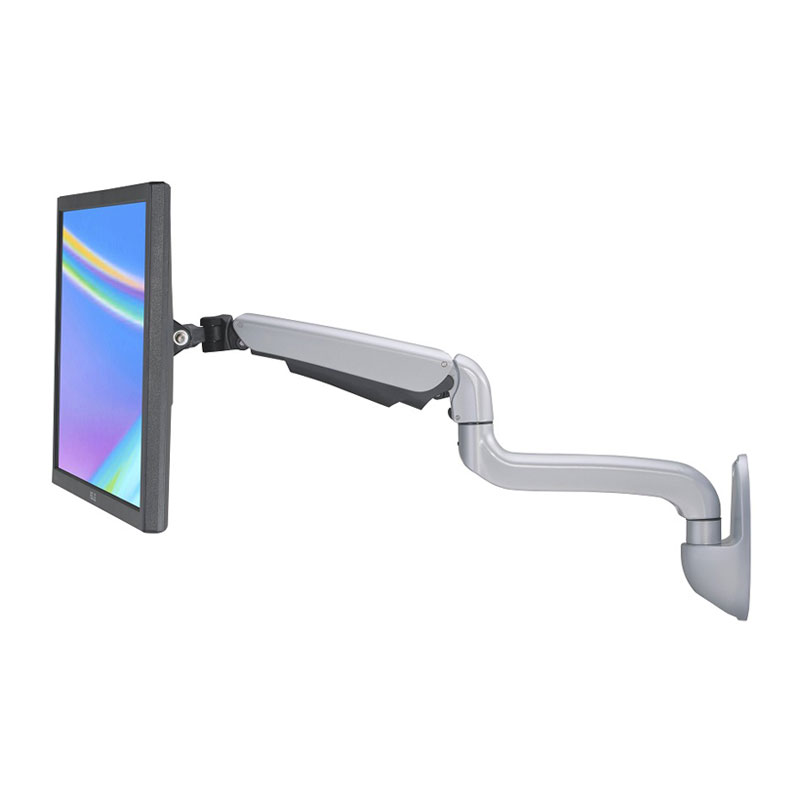

PC702 wall monitor mount features gas spring-assisted pivot for the monitor which ensures the smoothness of adjustments. The wall-mounted monitor arm can be further extended that provides extensive outreach for the best viewing distance as you need. Compatible with three types of arms, the type A, B and C. (Scroll down this page to obtain information of arms)
MechanismGas Spring
Screen CompatibilitySuits the monitor ≦24"
Vesa75x75 mm, 100x100 mm
Weight Capacity (EA)2-7 kgs / 4.4-15.4lbs
TiltUP 90°; Down 45°
Pan180 °
Rotation360°
StablitySecure and fasten valuable monitor or dispaly onto any worktops to prevent accidental crashes.
ComfortTilting angles can be adjusted upwards and downwards to cater for users' viewing experience.
FunctionalityCustomized settings is easily achieved with 180° horizontal movement and 360° individual screen rotaiton.
AccessibilityArticulating arm structure helps to shorten or extend the viewing distance.
Space savingLeaving worktop clean and easy to manage.
Easy installationApply the clamp base and fasten with screw. Job done.
- Manual Adjustment.
- Stay still where positioned.
- No electricity required.
- Environmentally-friendly.
【Standard Pack】
PC702-W-A

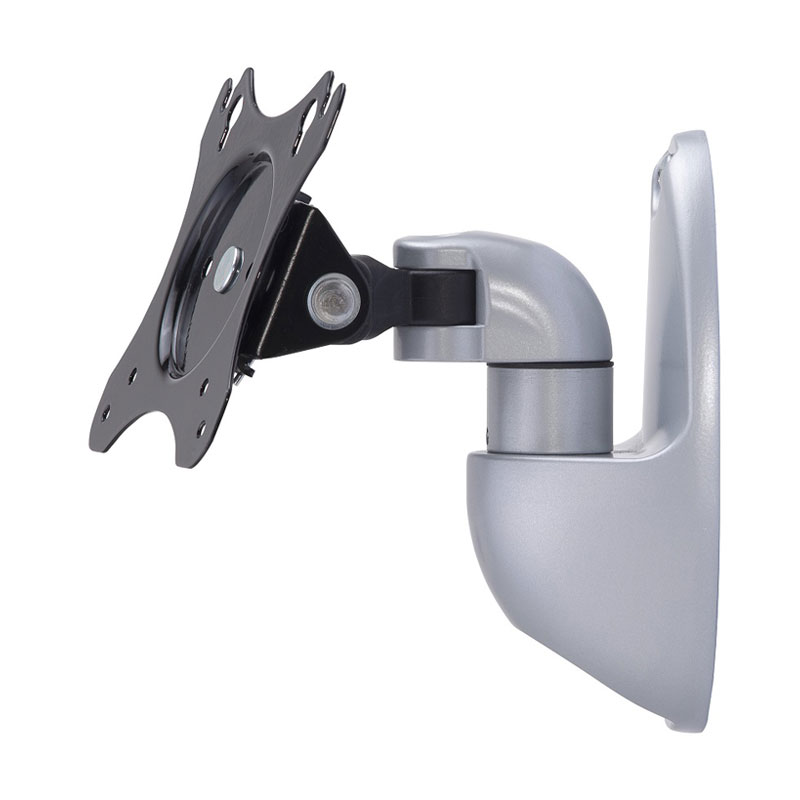

Arm stem with vesa plate x 1pc and Wall mounted set x 1pc
PC702-W-B
Adjustable Flexy Arm with vesa plate x 1pc and Wall mounted set x 1pc
PC702-W-C
Extended Adjustable Arm with vesa plate x 1pc and Wall mounted set x 1pc
Order with:
- PC301
- PC331
- SP203

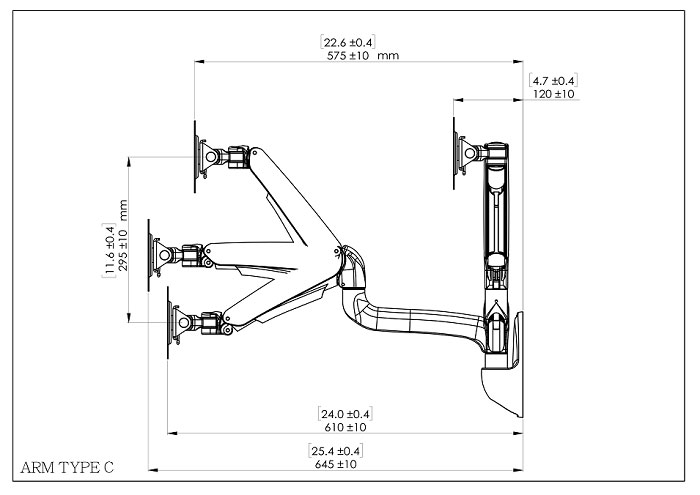

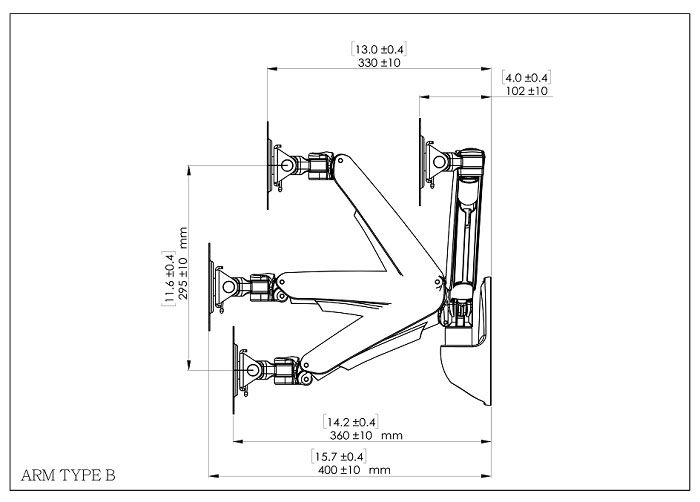

A=Arm Stem, B=Adjustable Flexy Arm, C=Extended Adjustable Arm All types of Arms can install on Wall, Wandklem and Desk mounts.
