Gas Spring Monitor Mount- Screen Hanging Type

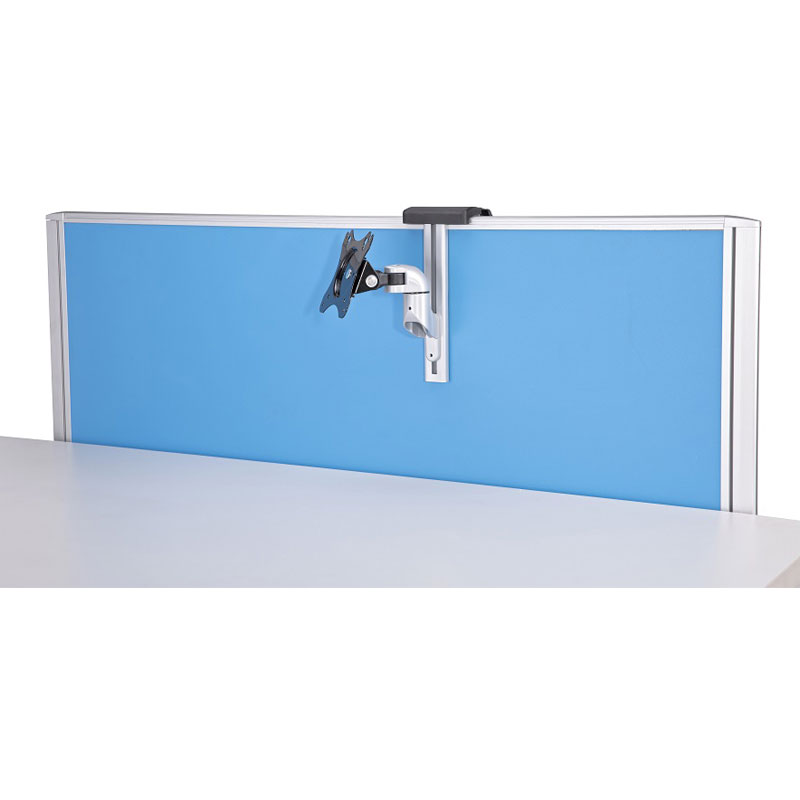

PC702 monitor mount (screen haning type) features gas spring-assisted pivot for the monitor which makes adjustment remarkably smoothness and easy.
With the tilting, swiveling, and rotation design help users to adjust the monitor for the most comfortable posture while saving up valuable workspace. Compatible with three types of arms, the type A, B and C. (Scroll down this page to obtain information of arms)
Mechanism Gas Spring
Screen CompatibilitySuits the monitor ≦27"for single and dual
Suits the monitor ≦24"for 3 to six monitors
Vesa75x75 mm, 100x100 mm
Weight Capacity (EA) 2-7 kgs / 4.4-15.4lbs
Tilt UP 90°; Down 45°
Pan180 °
Rotation360°
StablitySecure and fasten valuable monitor or dispaly onto any worktops to prevent accidental crashes.
Comfort Tilting angles can be adjusted upwards and downwards to cater for users' viewing experience.
Functionality Customized settings is easily achieved with 180° horizontal movement and 360° individual screen rotaiton.
Accessibility Articulating arm structure helps to shorten or extend the viewing distance.
Space savingLeaving worktop clean and easy to manage.
Easy installationApply the clamp base and fasten with screw. Job done.
- Manual Adjustment.
- Stay still where positioned.
- No electricity required.
- Environmentally-friendly.
【Standard Pack】
PC702-S-A
Arm stem with vesa plate x 1pc and screen hanging mounted set x 1pc
PC702-S-B
Adjustable Flexy Arm with vesa plate x 1pc and screen hanging mounted set x 1pc
PC702-S-C
Extended Adjustable Arm with vesa plate x 1pc and screen hanging mounted set x 1pc
Order with:
- SP204
- SP203

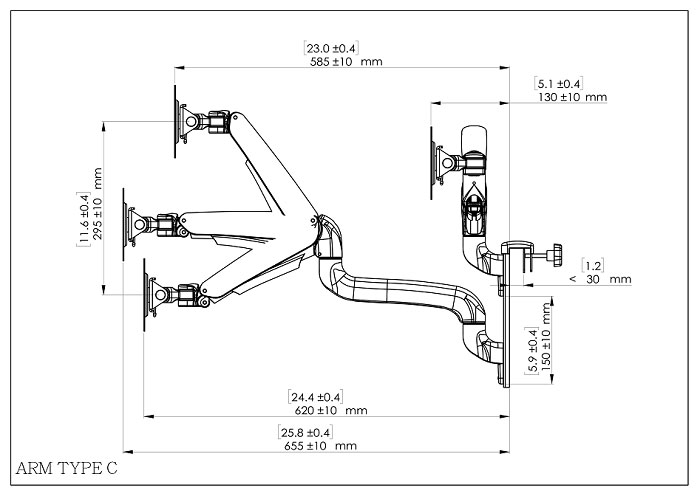

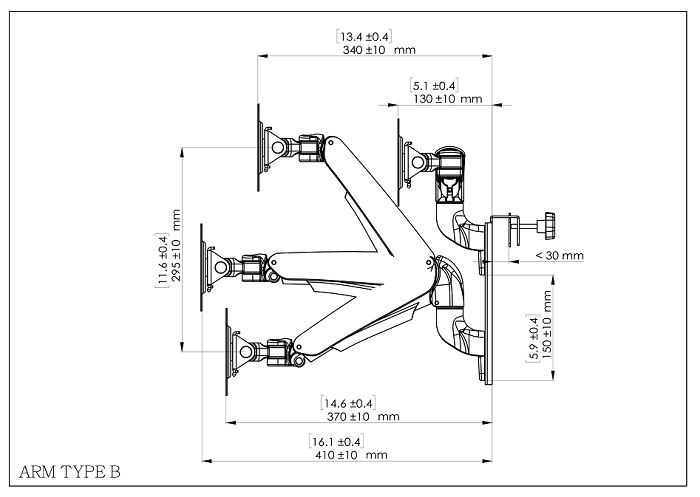

A=Arm Stem, B=Adjustable Flexy Arm, C=Extended Adjustable Arm All types of Arms can install on Wall, Screen hanging and Desk mounts.
