- Gas Spring Single Monitor Arm Desk Mount with Build-in 6-in-1 Docking Station

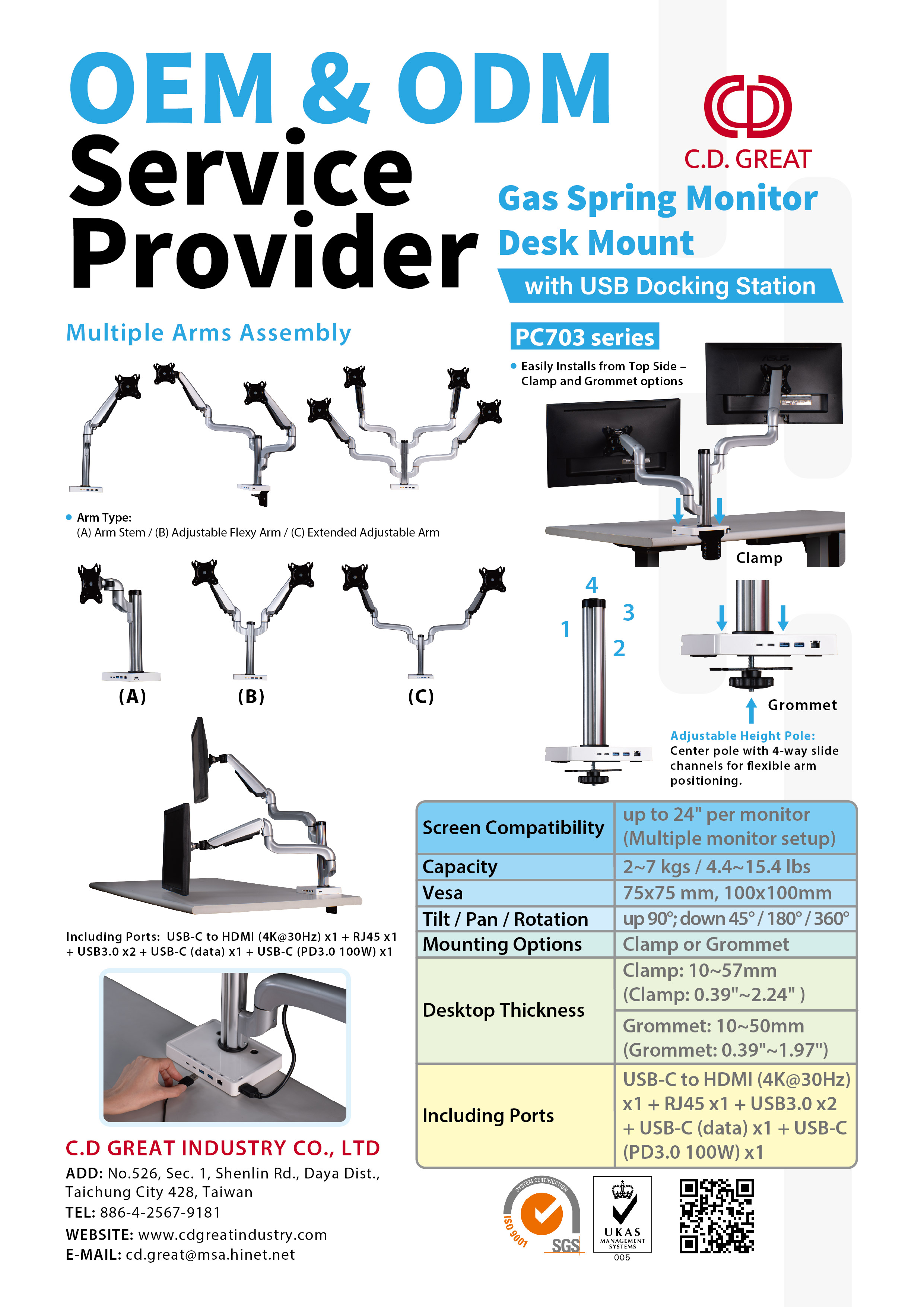

PC703 represents the high-quality monitor mount available on the market. Sliding Tracks make 4-direction installation possible. Offering solutions from one to four, and six monitors and compatible with three types of arms, the type A, B and C. The mounting options include desk clamp and grommet base. With integrated docking station, this series of monitor arms would improve efficiency.

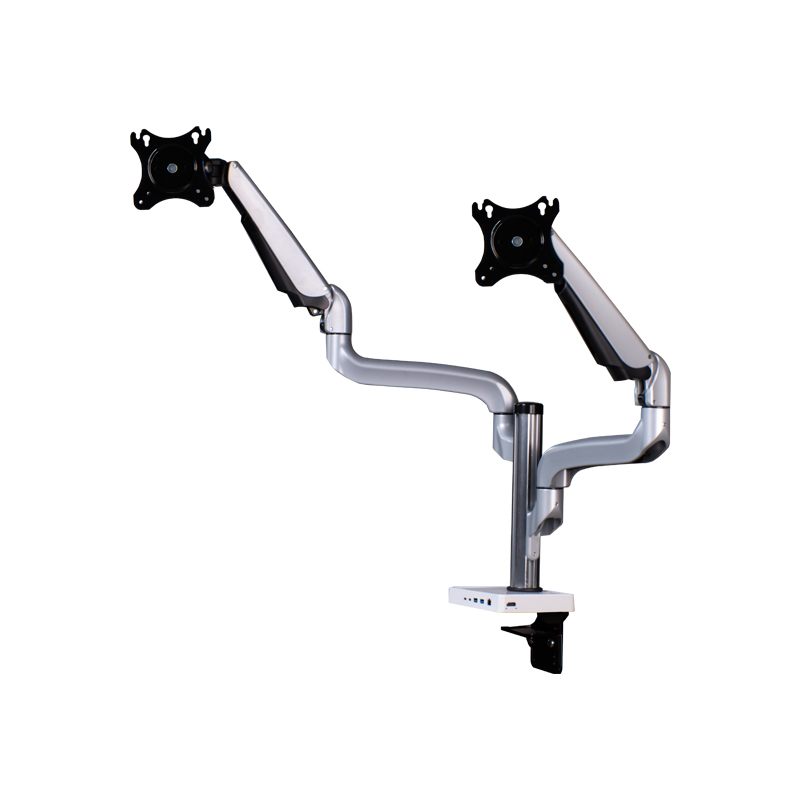

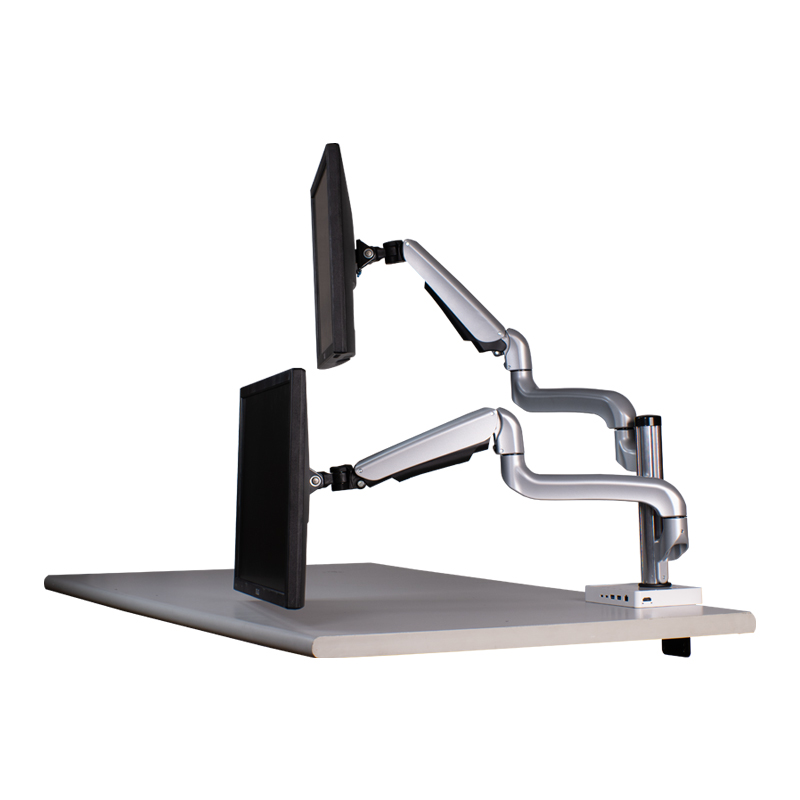

PC703-DC-02 made from aluminum with sturdy structure, support two 27" monitors weighing up from 4.4 to 15.4 lbs while suspend and swing effortlessly above the desktop. The monitor arm offers tilt, swivel, height adjustment, landscape rotation and cable management that make users work in a comfortable ergonomic position and streamline workspace easily. With gas spring-assisted pivot for the monitor offers fluid movement with the slightest touch which makes adjustment outstandingly easy.
People spend tons of time with their computer to work, study, rest and gaming nowadays, it is important to arrange computer monitor in a right position for you instead of the other way around. CDG, as a monitor mount manufacturer, would support you to create healthy working environment and improve the productivity.
- 4-direction installation possible with slide track design.
- Variety options of arm quantity from 1-6 while 3 different lengths of arm are available to choose.
- Gas spring-assisted pivot for the monitor offers fluid movement.
- Made from aluminum with sturdy structure which makes it a heavy-duty and eye-catching mount.
- Having monitor 360° rotate, +90° to –45° tilt, 180° pan.
- Cable management design to streamline worktop.
- VESA 75×75, 100×100 compatible with most LCD screens.
- Improves users' viewing experience, working and studying efficiency while eases neck and shoulder pain.
Screen Compatibility: Suits the monitor ≦27"for single and dual
Vesa 75x75 mm, 100x100 mm
Monitor Capacity: 2-7.0 kgs/ 4.4-15.4 lbs
Tilt: UP 90°; Down 45°
Pan: 180°
Rotation: 360°
Desktop Thickness: Clamp- 10~57mm (0.39”~2.24”) /Grommet- 10~50mm (0.39”~1.97”)
Base Options Standard (1-2 screens)
Heavy Load (3-6 Screens)
Arm Option A-Arm stem
B-Adjustable Flexy Arm
C-Extended Adjustable Arm
Material Aluminum articulating arm & pole
Iron Base with Plastic Cover

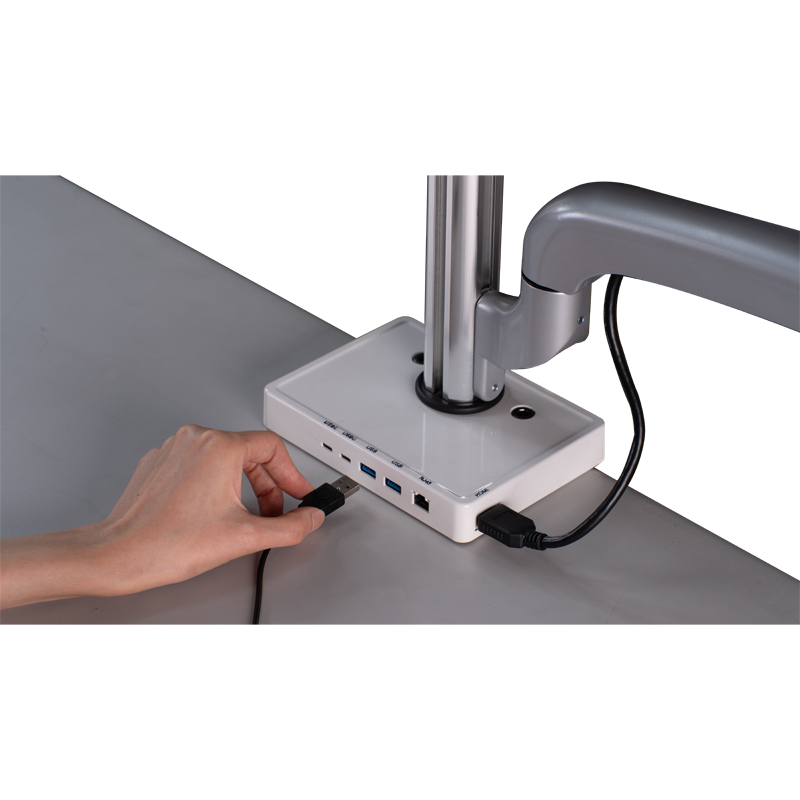

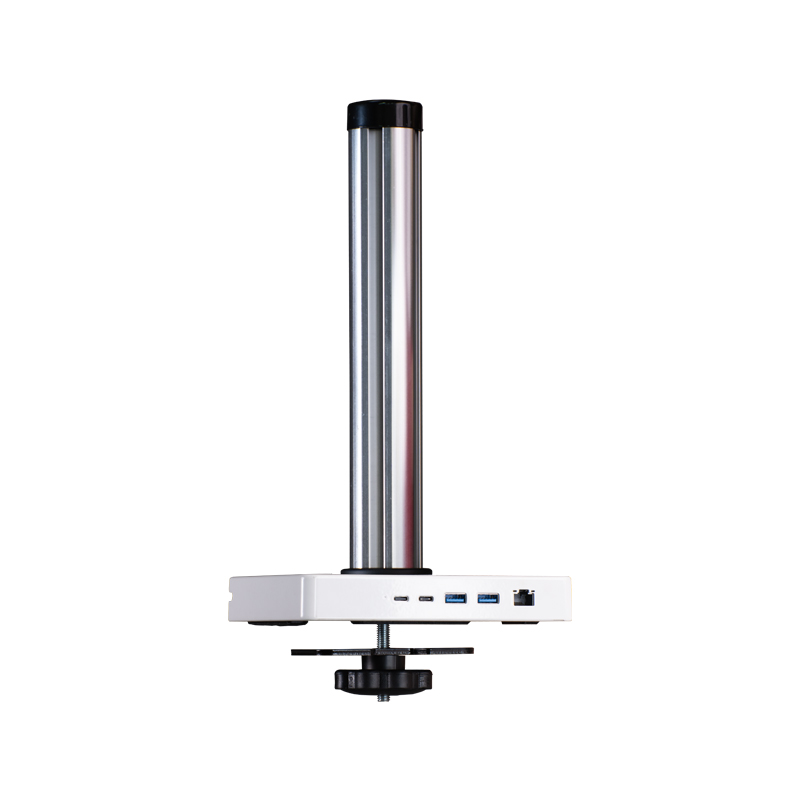

Integrated Docking Hub features USB-C to HDMI (4K@30Hz) x1 + RJ45 x1 + USB3.0 x2 + USB-C (data) x1 + USB-C (PD3.0 100W) x1
Stability Secure and fasten valuable monitor or display onto any worktops to prevent accidental crashes.
Comfort Tilting angles can be adjusted upwards and downwards to cater for users' viewing experience.
Functionality Customized setting is easily achieved with 180° horizontal movement and 360° individual screen rotation.
Accessibility Articulating arm structure helps to shorten or extend the viewing distance.
Space saving Leaving worktop clean and easy to manage.
Easy installation Apply the clamp base and fasten with screw.

- Manual Adjustment with gas spring assisted.
- Stay still where positioned.
- No electricity required.
- Environmentally-friendly.
【Standard Pack】
1. Arm with Vesa Plate x 2pc
2. Standard Pole Mount Set x 1pc
3. Docking Station including USB-C cable x 1 set
【Optional】
1. Arm Type: A, B, C
A: Arm Stem
B: Adjustable Flexy Arm
C: Extended Adjustable Arm
2. Desk Mount: Clamp or Grommet
【Accessories】
PC702-DC-S Standard pole clamp
PC702-DC-H Heavy pole clamp
PC702-DG-S Standard pole grommet
PC702-DG-H Heavy pole grommet
PC702-W Wall mount
PC702-S Wandklem mount
Order with:
- PC311
- PC703-DC,DG-01
- PC702-DC&DG-01
- PC702-DC&DG-03
- PC702-DC&DG-04
- PC702-DC&DG-06
